| Series |
Photo |
Dimensions |
Frequency |
Frequency Tolerance |
| SMD2520 Crystal |
 |
2.5*2.0*0.5mm |
12MHZ-48MHZ |
±10,±20PPM |

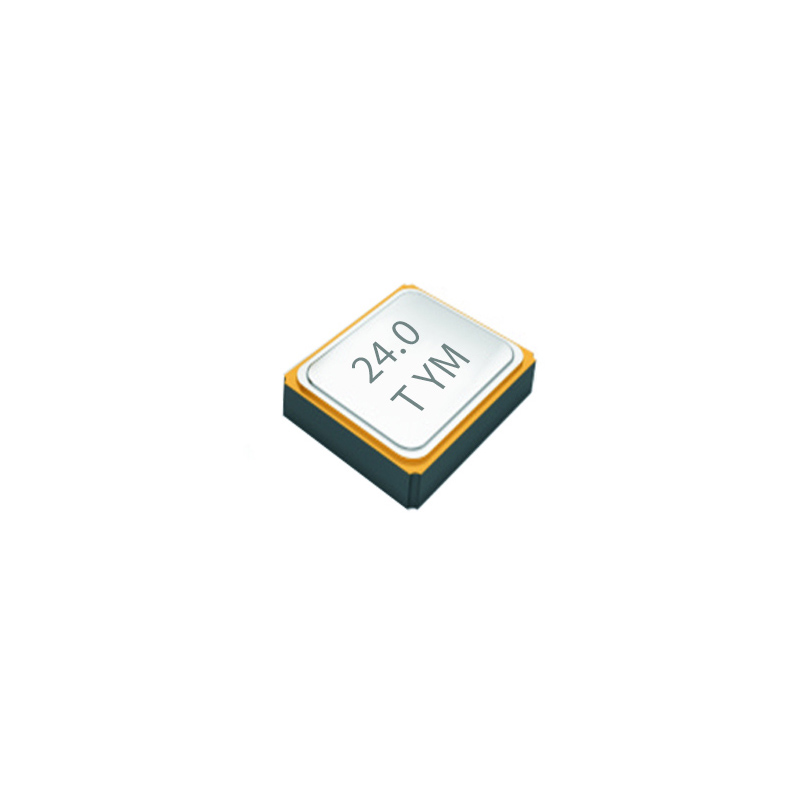

| SMD3225 Crystal |
 |
3.2*2.5*0.7mm |
10MHZ-48MHZ |
±10,±20PPM |
| SMD5032 Crystal |
 |
5.0*3.2*0.9mm |
8MHZ-48MHZ |
±10,±20PPM |
| SMD 3215 32.768KHZ Crystal |
 |
3.2*1.5*0.75mm |
32.768KHZ |
±20,±30PPM |
| SMD 7015 32.768KHZ Crystal |
 |
7.0*1.5*1.4mm |
32.768KHZ |
±20,±30PPM |

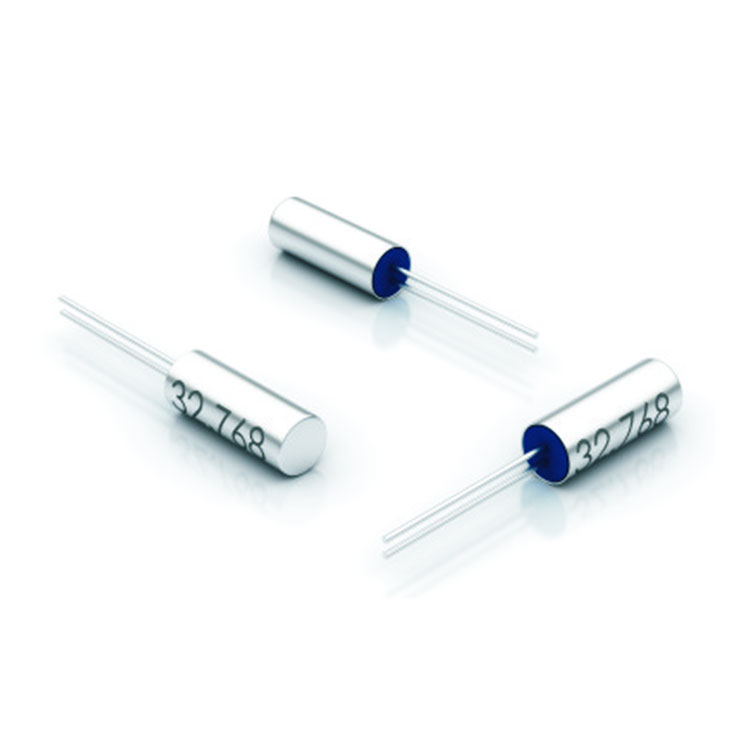

| kHz Crystal |
 |
2*6mm/3*8mm |
32.768KHZ |
±20,±30PPM |
| HC-49S Crystal |
 |
10.5*3.5*3.8mm |
3MHZ-100MHZ |
±20,±30PPM |
| HC-49SMD Crystal |
 |
13*4.0*4.7mm |
3MHZ-100MHZ |
±20,±30PPM |
GPS satellite positioning module:
U - blox solution to single mode of GPS module
MAX - 7 b - 1110.
Product synopsis:
Module size: 11 mmx10mmx2mm -- 16 mmx12mmx2. 6 mm
Using high-performance low-power ublox UBX - G7020 - KT chip design
Built-in LNA, high gain and low noise amplifier; Under the weak signal can achieve rapid positioning
Support A - GPS aided positioning
Low power consumption: Max 20 ma@3.3v
Working voltage range: 2.8 V to 3.6 V, backup voltage range: 2.0 V to 3.6 V
Single side table, secondary SMT program, and the application of fast
Manufactured lead-free technology, in line with RoHS standard
Double system positioning module:
U - blox GPS&GNSS double system positioning module
MAX - 8 b - 1110.
Product synopsis:
Module is a standard size: 11 mmx11mmx2mm -- 16 mmx12mmx2. 6 mm
Using high-performance low-power ublox UBX - M8030 - KT chip design
GPS, GLONASS, GALILEO, BeiDou, QZSS and SBAS more engine system
Support GPS&GNSS double system positioning
The built-in LNA, high gain and low noise amplifier
Under the weak signal can achieve rapid positioning
Support A - GNSS auxiliary positioning
Low power consumption: Max 40 ma@3.3v
Working voltage range: 2.8 V to 3.6 V, backup voltage range: 2.0 V to 3.6 V
Single side table, secondary SMT program, and the application of fast
Manufactured lead-free technology, in line with RoHS standard
